when protection is a
priority
At Elleys’ providing safety is our utmost priority. With the easy-to-install feature, they can be used in residential, commercial and industrial spaces. High-quality components used during manufacturing such as Silver Inlaid Copper maximizes contact dependability and offers greater energy savings.

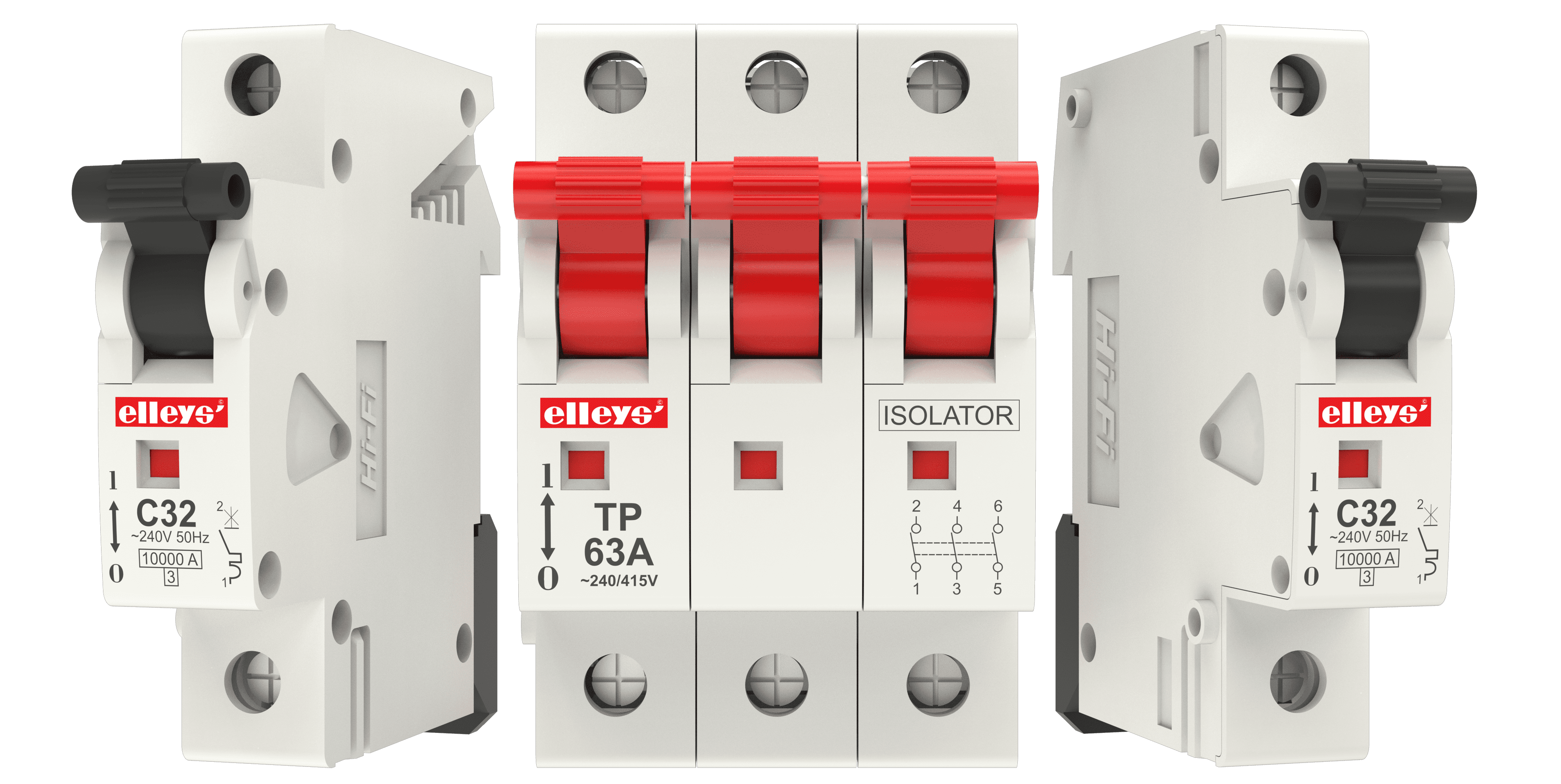

MINIATURE CIRCUIT BREAKERS (MCBs)
Elleys' MCBs provide a dual protection mechanism that defends against thermal overload and electromagnetic short circuits, ensuring the safety of cables and other electronic peripherals. Due to their capacity to handle large amounts of electricity, they are much more reliable and safer than a fuse. One of its advantages is that it ensures equal distribution of electrical energy across all devices. There will be lesser instances of power fluctuations inside the house.
Elleys’ MCB performs many functions such as local control switches, isolating switches against faults, and overload protection devices for installations or specific types of equipment or appliances. Elleys’ MCB is vital for the efficient functioning and maintaining the safety of the electric machine. Having a tremendous 10KA breaking capacity for the whole range of 6A to 63A and a special mid-trip function that permits instantaneous circuit fault diagnosis, it is built to exceed the highest international requirements.
Salient Features
Range from 6Amp - 63Amp in SP, SPN, DP, TP, TPN, and FP.
Rated Voltage: 240/415V AC, 50Hz.
DIN rail Mounting facility.
Specification: IS/IEC- 60898: Part 1: 2015.
Low Power Consumption.
Flame Retardant body.
Protection against Short Circuit & Over Load.
Rated Breaking capacity 10kA & Energy Limit Class 3.
Breathing Channels.
Finger Touch Proof (Ip20).
Cable termination capacity of wire up to 25 Sq.mm.
Available B & C curve.

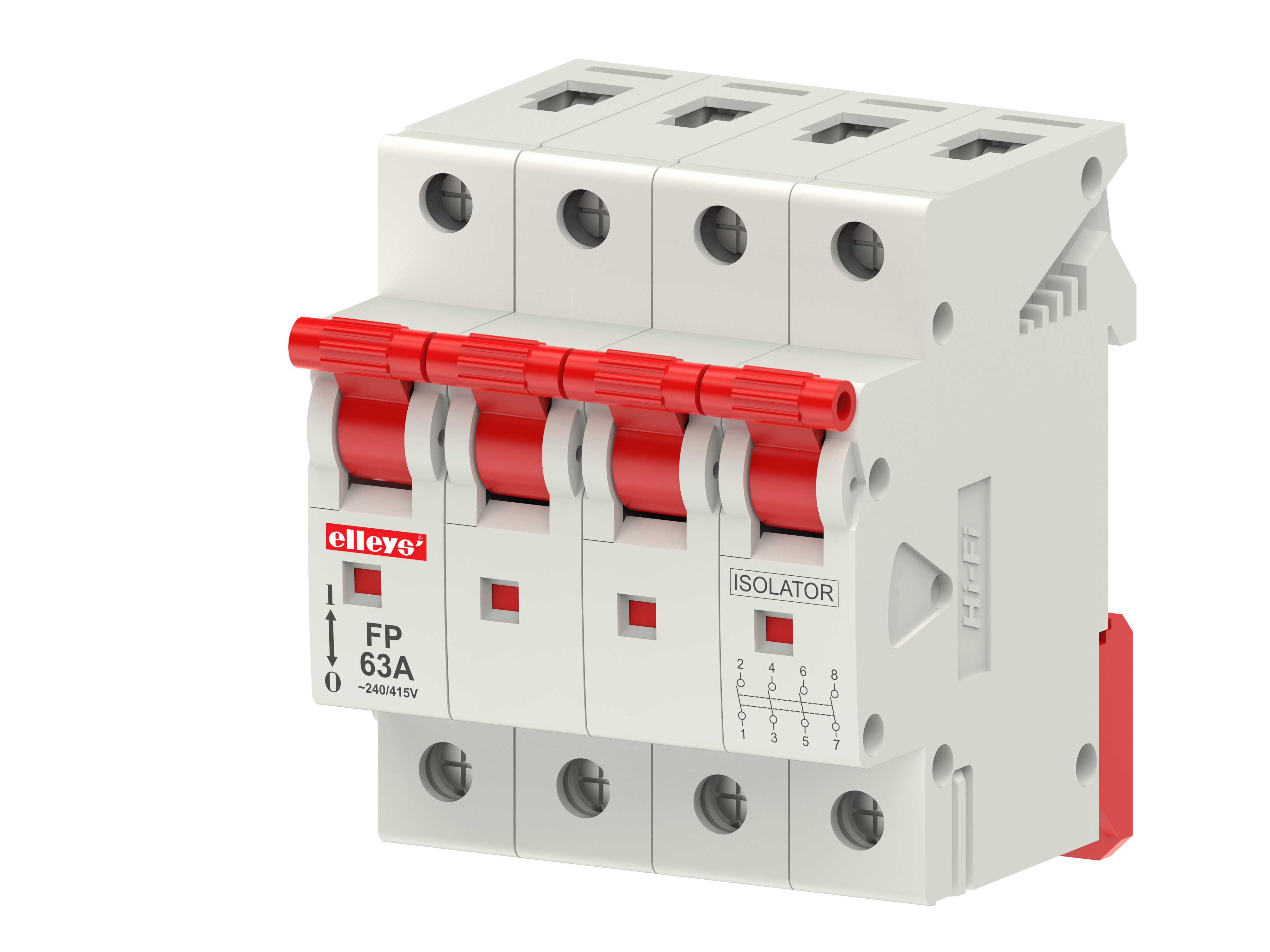

Isolators
Elleys' Isolators are switch disconnections with an independent manual operation that can make, carry, and break the current under normal circuit conditions, including operating under overload conditions, and they can also carry current under specified abnormal circuit conditions, like those caused by short circuits for a specific amount of time.
It has Safety terminals to avoid improper cable termination. For greater air circulation and to prevent overheating between two poles when individual poles are put next to one another in DBs, grooves are provided on the exterior body of the isolator.

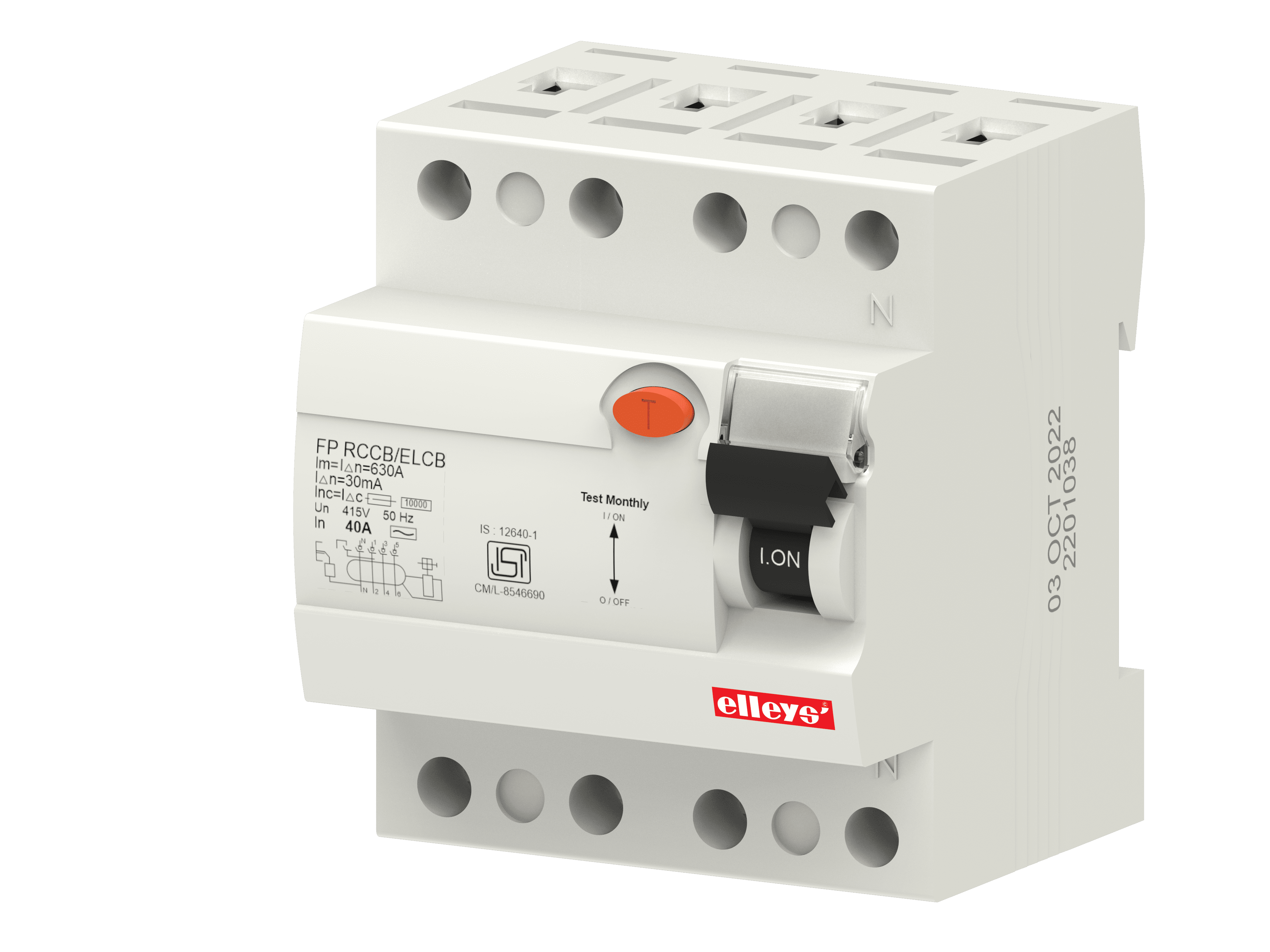

RCCBs
There are always dangers associated with the transmission of current via electrical installations. The improper path (i.e., through the insulation) is taken by electricity to reach the earth when electrical equipment is improperly insulated, cables are defective, and electrical devices are misused. This current is referred to as "Leakage Current."
Electrical shocks and flames are caused by earth leakage, an electrical danger. Residual Current Circuit Breaker (RCCB), sometimes referred to as Earth Leakage Circuit Breaker (ELCB), is capable of preventing earth leakage and the dangers it brings with it.

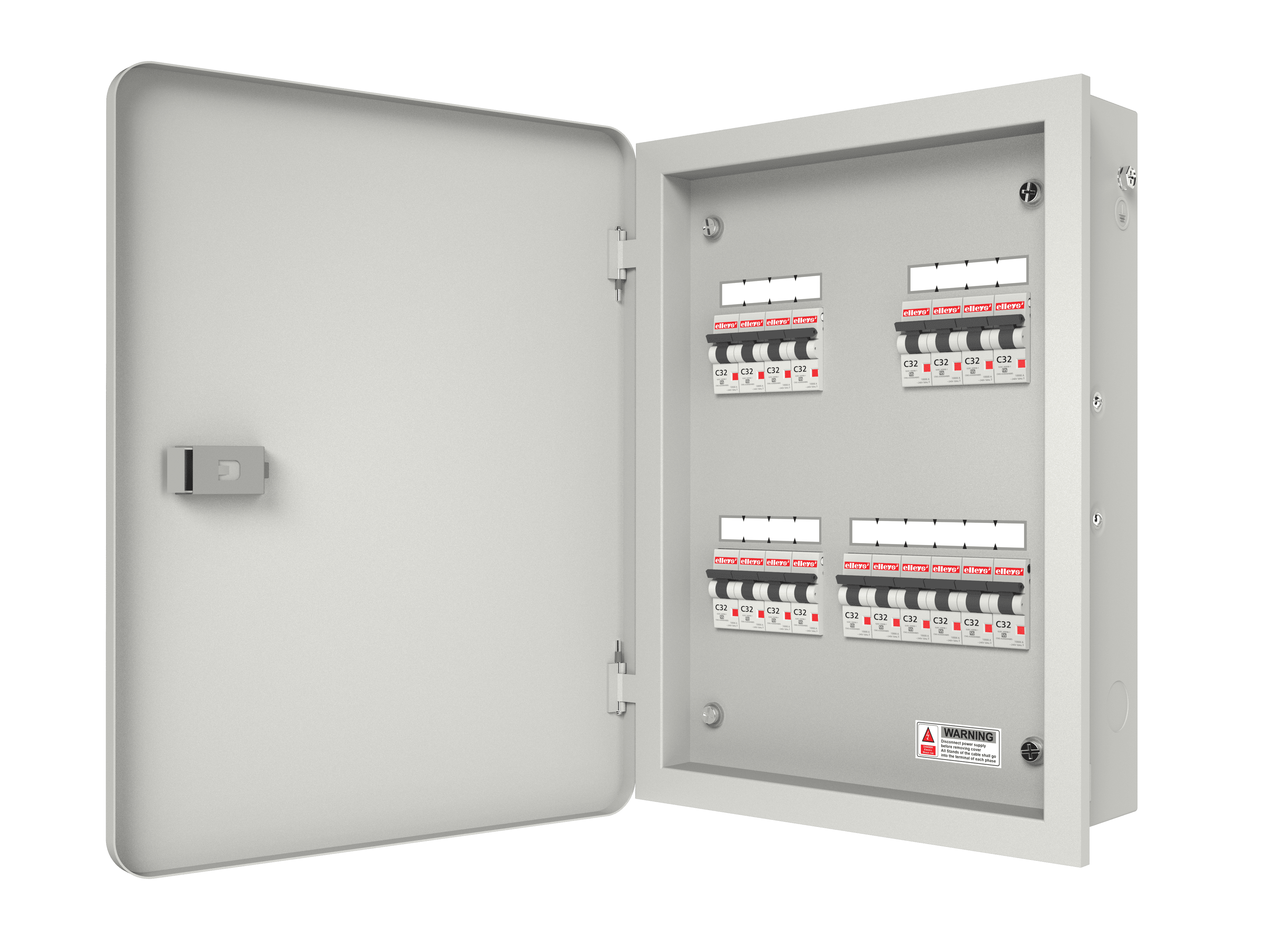

DISTRIBUTION BOARDS (DBs)
Elleys’ Distribution Boards (DBs) have been specially designed to meet all the technical requirements and ensure that the Distribution Boxes blend well with your aesthetics. Metal sheets of the highest quality and precision are used in their construction to guarantee their endurance and anti-rust properties.
Elleys’ Distribution Boards provide a convenient, practical, and affordable solution to any electrical network in residential, industrial, other complexes, etc. having single-phase or three-phase connections.
